CPTL-2E Copper Tube–Aluminum Fin Heating Convector

CPTL-2E Copper Tube–Aluminum Fin Heating Convector

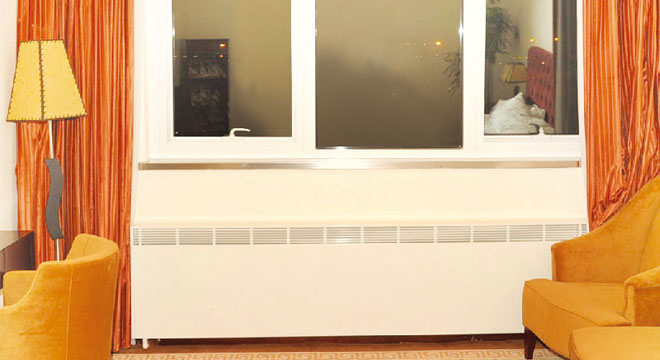

CONPIN CPTL-2E series baseboard convector utilizes hot water as the heating media.  CPTL-2E series heating convector adopts primary grade TP2 seamless copper tube and corrugated aluminum fin. The CPTL-2E series heating convector enjoys high reliability, long service life, and very high heat transfer efficiency. Even more, such heating convector features many advantages, such as high water pressure resistance, compact in size, light weight, and therefore fast temperature rise during start up. Either manual valve or automatic temperature regulating valve can be equipped with this heating convector. Consequently, such heating convector can be used in standalone zone with its individual control based on its occupancy. This heating convector works well with calorimeter.  CONPIN CPTL-2E series baseboard convector is good for living rooms, bedrooms, reading rooms, offices, conference rooms, etc.
CPTL-2E Copper Tube–Aluminum Fin Heating Convector

Installation Guide:
1、 Open the package from the bottom, and remove the front panel.
2、 Specify the baseboard convector’s installation position and height; make sure the bottom of the convector is at least 100-120mm above the floor to ensure enough air circulation clearance;
3、 Drill the installation holes on the wall based on the mounting holes’ position on the CPTL series convector, and use M8 expansion bolts to mount the convector on the dry wall;
4、 Install a manual valve or automatic temperature regulating valve to control the heating convector’s heating capacity and water pressure drop. The main inlet water valve is reguried to be installed for maintenance or replacement purpose in the future;
5、 Following the installation in the previous step, please open the hot water inlet valve and the air vent to make the hot water to pass through and to make sure the air inside to escape from the tube. Then, please remind to close the air vent valve and cover the front panel on the right position.


  • Pangu Plaza (Beijing) complex selected CONPIN heated air curtains and floor buried heating convectors. Pangu plaza complex is seated near the Water Cube, featuring breathtaking views of Beijing’s Olympic Park theatre of dreams. Pangu plaza complex include Pangu Luxury 7 Star hotel as well as world class office space, deluxe restaurants, conference rooms, lavish residences and the breathtakingly opulent Sky Courtyards.
  • Beijing Capital Airport T3 Terminal employed buried tube-fin heating convector from CONPIN as their space heating equipment.
  • Beijing Capital Airport business jet airplane building adopted tube-fin heating convector from CONPIN as the space heating devices.
  • Dalian Heavy Machinery Equipment Co. Ltd. selected CONPIN’s side blowing heated air curtain duo. The air curtain sealed the door with height of 20 meters, with width of 30 meters. It is the largest air curtain in China.
  • Beijing Capital Airport T1 Terminal employed CONPIN ceiling concealed hot water heated air curtains and electric heated air curtains during their retrofit.
