CPCF-D(C2) Series Side Blowing Electric Heated Air Curtain

CPCF-D(C2) Series Side Blowing Electric Heated Air Curtain

General Features:
CONPIN CPCF-D(C2) Series Side Blowing Electric Heated Hybrid Air Curtain is designed for industry buildings with door entrance height > 3 meters and door width > 3 meters. For sake of less heating energy consumption, this air curtain only employs electric heater on the bottom part (height < 2m), with the remaining part (>2m) as an unheated air curtain.

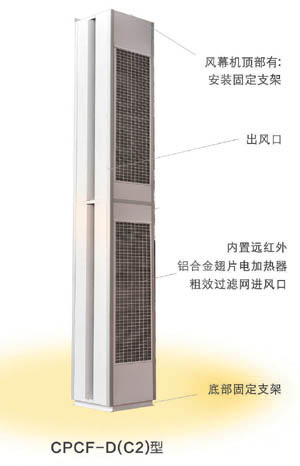

CPCF-D(C2) Series Side Blowing Electric Heated Air Curtain

Fan:
High efficiency low noise electric motor with imported top tier 100,000 hours maintenance free bearings is adopted, together with new developed centrifugal blower. The standard power input is 380V/50Hz.

Heat Exchanger:
CPCF-D(C2) series adopts aluminum alloy plate fin as the heating surface. The fan is placed as draw-through type, thus uniform air flow may pass the electric heater to guarantee the better heating effect.

Filtration Device:
Aluminum alloy mesh net coarse filter will be included on the air inlet side to avoid dust accumulation within the heater.

Door Sealing Height and Width:
Door Sealing Height 3~12 m, Door Sealing Width 3~6 m

Sizing Method:
Door height >3m,but door width <3m, please install a single unit on one side;
Door height >3m,but door width >3m, please install a pair on both sides;

Installation Notice:
Please put the air curtain in the indoor side, and install the air curtain vertically on the door side(s), either in one single unit or in a pair based on sizing decision.

Instruction of use:
1、 Aluminum alloy mesh net coarse filter has been employed in this series of air curtain. Please schedule regular cleaning based on the air curtain operation frequency. Either high pressure air flow or clean water could be used for filter cleaning. If there is oil or grease on the filter, please use degreasing agent;
2、 Please install one specified individual protective switch for this air curtain to safeguard it from breaking down due to over loaded. It is not OK to just use a master protection switch in the main power supply.
3、 After wiring, please make a trial operation to check if the blower is running smoothly. Should there is any damage during shipping, please check it out before installation.
4、 Please inspect the air curtain outlet air velocity periodically. Never operate the air curtain without air filter. If the air velocity is small and the air curtain cannot seal the door seamless, please wash the air filter or replace the air filter by a new one;


CPCF-D(C2) Series Side Blowing Electric Heated Air Curtain

  • Pangu Plaza (Beijing) complex selected CONPIN heated air curtains and floor buried heating convectors. Pangu plaza complex is seated near the Water Cube, featuring breathtaking views of Beijing’s Olympic Park theatre of dreams. Pangu plaza complex include Pangu Luxury 7 Star hotel as well as world class office space, deluxe restaurants, conference rooms, lavish residences and the breathtakingly opulent Sky Courtyards.
  • Beijing Capital Airport T3 Terminal employed buried tube-fin heating convector from CONPIN as their space heating equipment.
  • Beijing Capital Airport business jet airplane building adopted tube-fin heating convector from CONPIN as the space heating devices.

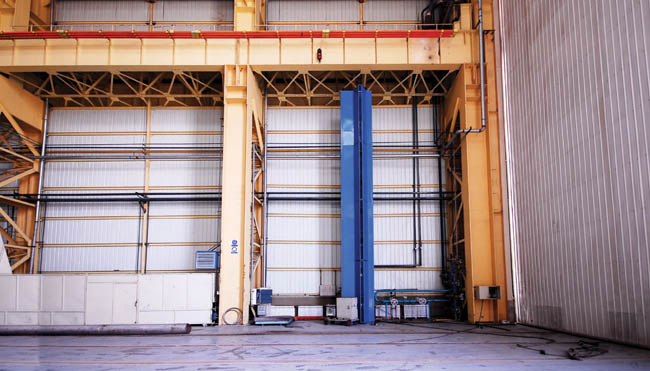

  • Dalian Heavy Machinery Equipment Co. Ltd. selected CONPIN’s side blowing heated air curtain duo. The air curtain sealed the door with height of 20 meters, with width of 30 meters. It is the largest air curtain in China.
  • Beijing Capital Airport T1 Terminal employed CONPIN ceiling concealed hot water heated air curtains and electric heated air curtains during their retrofit.
