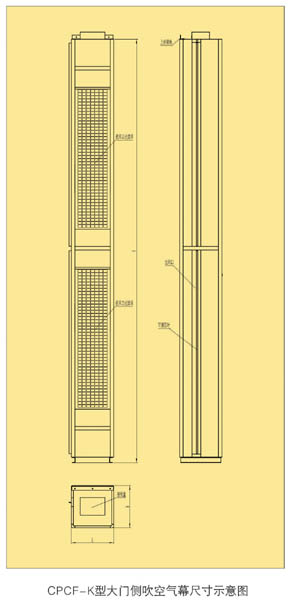

CPCF-K Series Side Blowing Unheated Air Curtain

CPCF-K Series Side Blowing Unheated Air Curtain

CPCF-K Series Side Blowing Unheated Air Curtain

General Features：

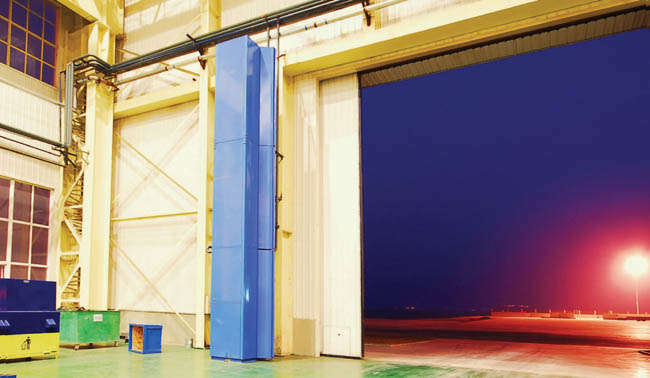

CONPIN CPCF-K Series Side Blowing Unheated Air Curtain is especially designed for industry buildings with door entrance height > 3 meters and door width > 3 meters. Such air curtain can be equipped either in in single unit or in pairs. This air curtain can be seated vertically on the floor ground, thus the space above the building entrance can be emptied. This air curtain can effectively decrease building heating load by blocking the cold air from penetrating through the door entrance so as to enhance indoor thermal comfort. This air curtain is good for industrial factory buildings, ware houses, and mining refinery plants.

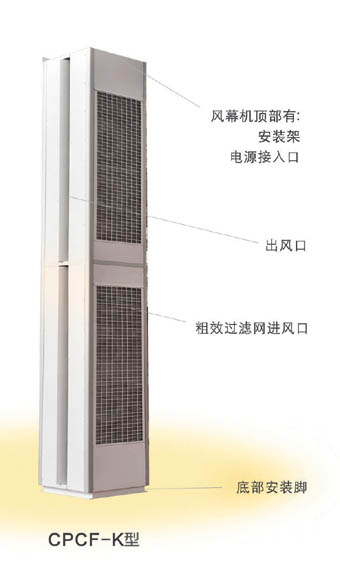

CPCF-K Series Side Blowing Unheated Air Curtain

Fan:
High efficiency low noise electric motor with imported to tier maintenance free bearings is adopted, together with new developed centrifugal blower. The standard power input is 380v/50Hz.

Filtration Device：
Aluminum alloy mesh net coarse filter will be included on the air inlet side to avoid dust accumulation within the air curtain.

Door Sealing Height and Width：
Door Sealing Height 3~12 m, Door Sealing Width 3~10 m

Sizing Method:
Door height >3m，but door width <3m, Please pick Model C1 and install a single unit on one side；
Door height >3m，but door width >3m but <6m, Please pick Model C1 and install a pair on both sides；
Door height >3m，but door width >6m, Please pick Model C3 and install a single unit on one side；

Key Specs:
Air Flow Rate: 10000m3/h ~ 30000m3/h
Power: 380V/50Hz
Door Sealing Height: 3m 3.5m 4.0m 4.5m 5.0m 5.5m 6.0m 6.5m 7.0m  8.0m 9.0m

Installation Notice:
Please put the air curtain in the indoor side. The air curtain should be installed vertically on the door side(s), either in one single unit or in a pair based on sizing decision.

Instruction of use:
1、 Aluminum alloy mesh net coarse filter has been employed in this series of air curtain. Please schedule regular cleaning based on the air curtain operation frequency. Either high pressure air flow or clean water could be used for filter cleaning. If there is oil or grease on the filter, please use degreasing agent;
2、 Please install one specified individual protective switch for this air curtain to safeguard it from breaking down due to over loaded. It is not OK to just use a master protection switch in the main power supply.
3、 After wiring, please make a trial operation to check if the blower is running smoothly. Should there is any damage during shipping, please check it out before installation.
4、 Please inspect the air curtain outlet air velocity periodically. Never operate the air curtain without air filter. If the air velocity is small and the air curtain cannot seal the door seamless, please wash the air filter or replace the air filter by a new one;.
