CPCF-R(C3) Series Side Blowing Hot Water Heated Hybrid Air Curtain

CPCF-R(C3) Series Side Blowing Hot Water Heated Hybrid Air Curtain
General Features：
CONPIN CPCF-R(C3) Series Side Blowing Hot Water Heated Hybrid Air Curtain is the further modified model for CPCF-R(C1) for even taller door,  which is the baseline model.  CPCF-R(C3) series is especially designed for the building with limit heating sources while large heating demand exists. Compared to for CPCF-R(C1), which employs heat exchanger throughout, this air curtain only employs hot water – air heat exchanger on the bottom part (height <3m), with the remaining part (height >3m) as an unheated air curtain. Such hybrid configuration may achieve comparable door sealing effect and heating effect, while the 30-60% hot water can be saved. This air curtain is good for industrial factory buildings, ware houses, and mining refinery plants.

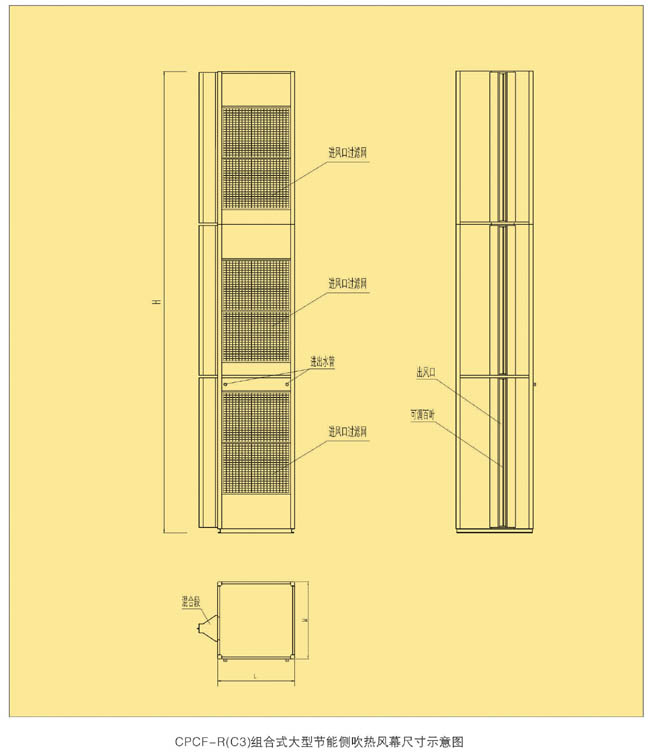

CPCF-R(C3) Series Side Blowing Hot Water Heated Hybrid Air Curtain

Fan:
High efficiency low noise electric motor with imported top tier 100,000 hours maintenance free bearings is adopted, together new developed centrifugal blower. The standard power input is 380V/50Hz.

Heat Exchanger:
CPCF-R(C3) series adopts primary grade copper tube and double-sine wave aluminum fin, with hot water as the heating media. The heating convector features long service life, small in size but large in heating capacity, high heat transfer efficiency, high corrosion resistance and high pressure resistance.  Drain valve is design on the heat exchanger bottom to empty the water from freezing during un-occupied winter time.

Filtration Device：
Aluminum alloy mesh net coarse filter will be included on the air inlet side to avoid dust accumulation within the heat exchanger.

Door Sealing Height and Width：
Door Sealing Height 6~30 m, Door Sealing Width 6~30 m

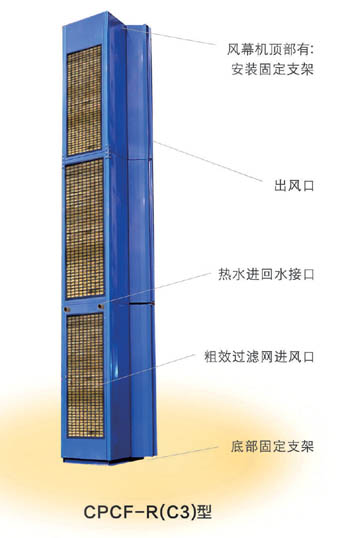

CPCF-R(C3) Series Side Blowing Hot Water Heated Hybrid Air Curtain

More in Detail
  • Pangu Plaza Complexity, Beijing
    Pangu Plaza (Beijing) complex selected CONPIN heated air curtains and floor buried heating convectors. Pangu plaza complex is seated near the Water Cube, featuring breathtaking views of Beijing’s Olympic Park theatre of dreams. Pangu plaza complex include Pangu Luxury 7 Star hotel as well as world class office space, deluxe restaurants, conference rooms, lavish residences and the breathtakingly opulent Sky Courtyards.
  • Beijing Capital Airport T3 Terminal
    Beijing Capital Airport T3 Terminal employed buried tube-fin heating convector from CONPIN as their space heating equipment.
  • Beijing Capital Airport Business Jet Airplane Building
    Beijing Capital Airport business jet airplane building adopted tube-fin heating convector from CONPIN as the space heating devices.

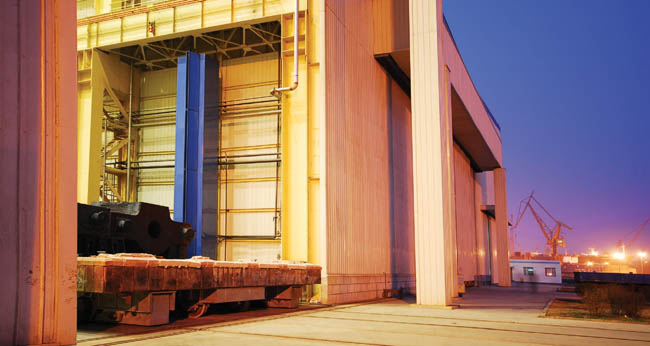

  • Dalian Heavy Machinery Equipment Co. Ltd
    Dalian Heavy Machinery Equipment Co. Ltd. selected CONPIN’s side blowing heated air curtain duo. The air curtain sealed the door with height of 20 meters, with width of 30 meters. It is the largest air curtain in China.
  • Beijing Capital Airport T1 Terminal
    Beijing Capital Airport T1 Terminal employed CONPIN ceiling concealed hot water heated air curtains and electric heated air curtains during their retrofit.
