Installation Guide:
1、 Open the package from the bottom, and remove the front panel.
2、 Specify the convector’s installation position and height; make sure the bottom of the convector is at least 100-120mm above the floor to ensure enough air circulation clearance;

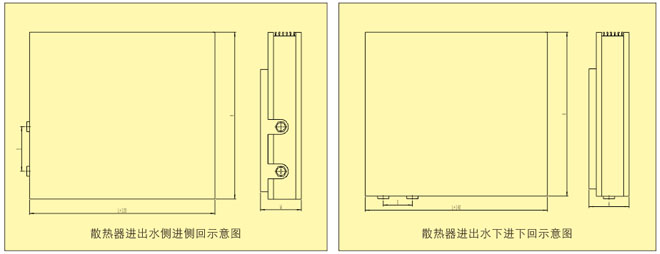

3、 Drill the installation holes on the wall based on the mounting holes’ position on the CPTL series convector, and use M8 expansion bolts to mount the convector on the dry wall;
4、 Install a manual control valve or automatic temperature regulating valve to control the heating convector’s heating capacity and water pressure drop. The main inlet water valve is reguired to be installed for maintenance or replacement purpose in the future;
5、 Following the installation in the previous steps, please open the hot water inlet valve and the air vent to make the hot water to pass through and to make sure the air inside to escape from the tube. Then, please remind to close the air vent valve and cover the front panel on the right position.
